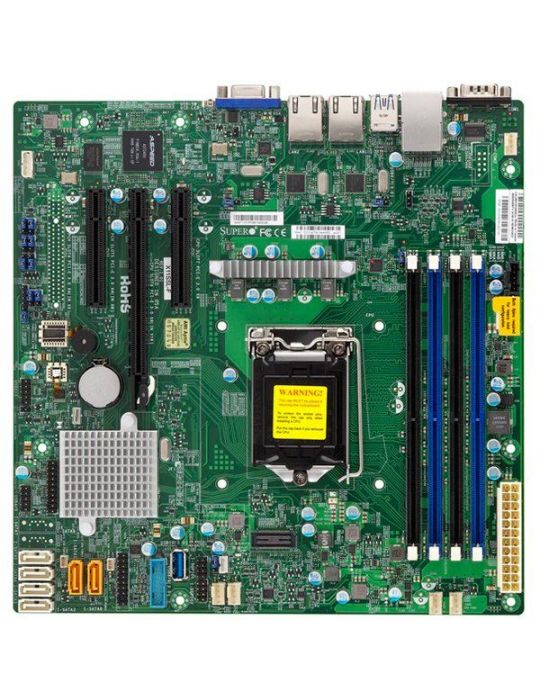

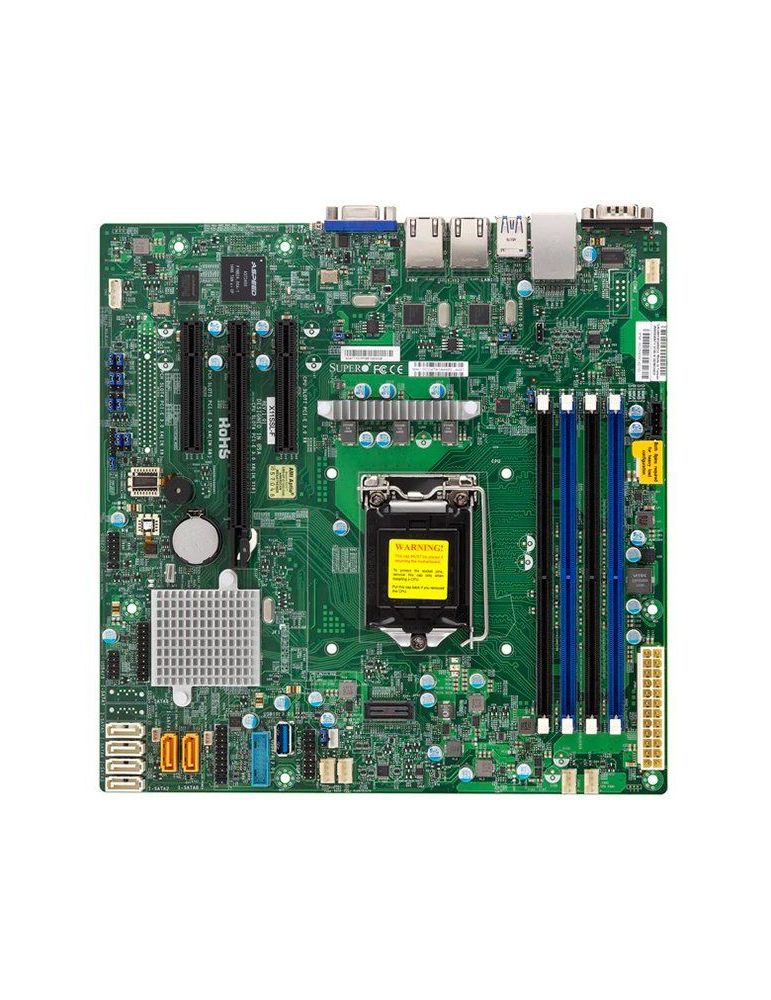

Supermicro mbd-x11ssl-f-b single skt intel c232 chipset 4xdimms udimm ddr4

Fisa tehnica

Garantie

12

Vga

1 (15-pin db)

Produse returnabile aflate in garantie

Yes

Criterii de validare a garantiei

Serial number

Greutatea bruta a pachetului

2.1 kg

Greutatea neta a pachetului

0 kg

Bucati in pachet

1

Retail packaging net weight carton

0 kg

Retail packaging net weight plastic

0 kg

Pachete (colete) in cutie

1

Tip pachet

Retail

Factor de forma

Micro atx

Inaltime

244 mm

Latime

244 mm

Termen de garantie

12 month(s)

Standard soclu procesor (cpu)

Socket 1151

Cpu capacitate maxima suportata

1

Tip memorie

Ddr4 sdram

Factor de forma a memoriei

Dimm 288-pin

Viteza de memorare

2133mhz(pc4-17000) ,2400mhz(pc4-19200) ,1600mhz(pc4-12800) ,1866mhz(pc4-14900)

Ofera metode de corectie a erorilor

Ecc

Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata

64 gb

Cantitatea totala de sloturi de memorie

4

Caracteristici memorie

Unbuffered

Integrated

Bstorage controller:/b,supports: level 0, level 1, level 10, level 5,sata iii-600 (6),

Chipset (circuit integrat) video

Aspeed ast2400

Lan chipset

Intel i210at

Lan

2 (rj-45)

Suport protocol legatura date

Gigabit ethernet/fast ethernet/ethernet

Usb 3.0

2 (usb type a)

Chipset

Intel c232

Usb 2.0

2 (usb type a)

Serial

1 (9-pin)

Pci express 3.0 x8

2

Cabluri incluse

2 x sata data cables

Accesorii incluse

I/o shield

Pci express 3.0 x4

1

Prevazut cu cpu

Intel celeron ,intel pentium ,intel core i3 ,intel xeon e3-1200v5 series ,intel xeon e3-1200v6 series

Video controller integrated

Yes

Lan integrated

Yes

Bios type

Ami

Bios features

Acpi 1.0 support ,acpi 2.0 support ,apm 1.2 support ,dmi 2.3 support ,hardware bios virus protection ,pci 2.3 ,pnp support ,usb keyboard support ,acpi 3.0 support ,acpi 4.0 support ,smbios 2.7.1 support ,uefi 2.3.1 ,rtc wakeup ,128mb spi flash eeprom

Software inclus

Watch dog ,nmi ,ipmi 2.0
